Good Wholesale Vendors 5 Kw Off Grid Solar System - Solar Panel Kit High Frequency Off Grid 2KW Home Solar Energy System – Tianxiang
Good Wholesale Vendors 5 Kw Off Grid Solar System - Solar Panel Kit High Frequency Off Grid 2KW Home Solar Energy System – Tianxiang Detail:
Product Introduction
| Model |
TXYT-2K-48/110、220 |
|||
| Serial Mumber | Name | Specification | Quantity | Remark |
| 1 | Monocrystalline solar panel | 400W | 4 pieces | Connection method: 2 in tandem × 2 in parallel |
| 2 | Gel battery | 150AH/12V | 4 pieces | 4 strings |
| 3 | Control inverter integrated machine |
48V60A 2KW |
1 set |
1. AC output: AC110V/220V; 2. Support grid/diesel input; 3. Pure sine wave. |
| 4 | Control inverter integrated machine | Hot Dip Galvanizing | 1600W | C-shaped steel bracket |
| 5 | Control inverter integrated machine | MC4 | 2 pairs | |
| 6 | Y connector | MC4 2-1 | 1 pair | |
| 7 | Photovoltaic cable | 10mm2 | 50M | Solar panel to control inverter all-in-one machine |
| 8 | BVR cable | 16mm2 | 2 sets | Control the inverter integrated machine to the battery，2m |
| 9 | BVR cable | 16mm2 | 3 set | Battery Cable，0.3m |
| 10 | Breaker | 2P 32A | 1 set | |
Diagram Of Solar Off-grid system
Specification
A stand-alone power supply system covers your entire electricity demand and become a
independent from grid connection. It has four mains parts: Solar Panel; Controller; Battery;
Inverter(or controller built-in).
Solar Panels
- 25 years Warranty
- Highest conversion efficiency of 17%
- Anti-reflective and anti-soiling surface power, loss from dirt and dust
- Excellent mechanical load resistance
- PID Resistant,High salt and ammonia resistance
Inverter
- Pure sine wave output;
- Low DC voltage, saving system cost;
- Built-in PWM or MPPT charge controller;
- AC charge current 0-45A adjustable,
- Wide LCD screen, clearly and precisely shows icon data;
- 100% imbalance loading design, 3 times peak power;
- Setting different working modes based on variable usage requirements;
- Various communication ports and remote monitoring RS485/APP(WIFI/GPRS) (Optional).

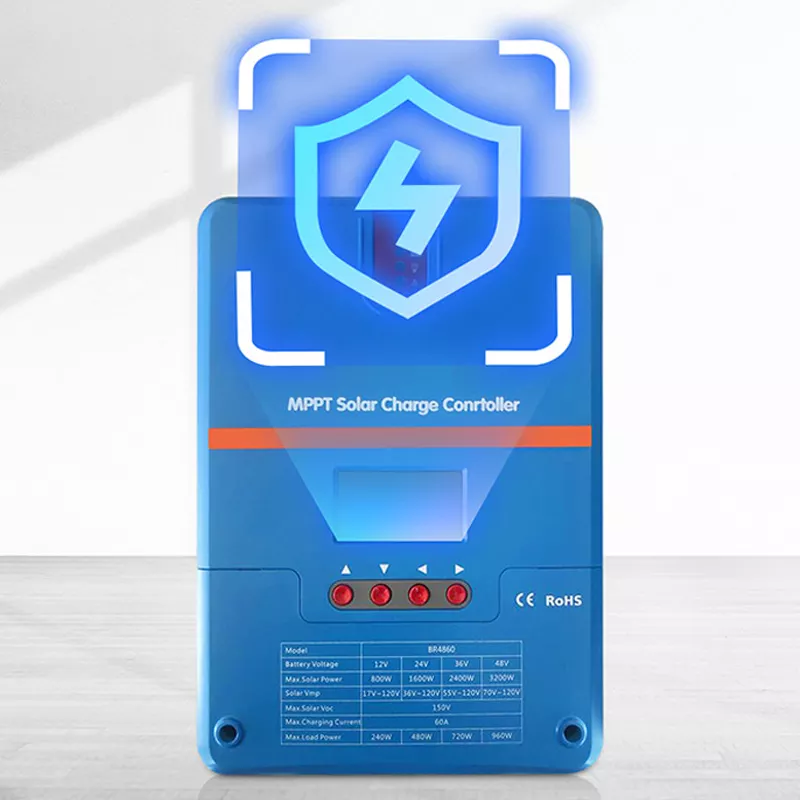

MPPT Controller
- MPPT efficiency >99.5%
- High definition LCD display
- Suitable for all kinds of batteries
- Support remote monitoring of PC and APP
- Support dual RS485 communication
- Self-heating & IP43 high waterproof level
- Support parallel connection
- CE/Rohs/FCC certifications approved
- Multiple protection functions, overvoltage and overcurrent, etc
Battery
- 12v storage battery
- Gel battery
- Lead acid battery
- Deep cycle
PV Mounting Structure(Mounting Brakets)
- Pitched roof mounting structure
- Flat roof mounting structure
- Ground mounting structure
- Ballast type mounting structure
Accessories
- PV Cable&MC4 Connector;
- 4mm2, 6mm2, 10mm2, 1 6mm2, 25mm2, 35mm2
- Colors: Black For STD, Red Optional.
- Lifetime: 25 Years
Product detail pictures:
